factory headlight adjustment

9553 Views 12 Replies 9 Participants Last post by Rontay, Mar 31, 2013

2007 TITAN LE

Discussion Starter · Dec 21, 2007

I recently recieved my Titan back from a frontal collision. The body shop did not properly adjust the headlights. I did a seach and came up with this thread ....
http://www.titantalk.com/forums/tit...ry-foglights.html?highlight=aiming+headlights

Is the chart referring to the white screw that is seen form the top of the headlight assembly? I tried to turn that and it had no effect on the aim of the headlights. If I played with the correct knob it seems that it will take a lot of screwing to do the job (pun intended). I had to use a cresent wrench and it barely fit inside the hole , what size wrench is needed and which direction will adjust it up? :cheers:

Save

1 - 13 of 13 Posts

krh2

· #2 · Dec 21, 2007

There is a bolt on the top of both light housings. Wrench or star driver will turn it. Clockwise = down, counterclockwise = up. I did the leveling kit and one full turn on each stopped others from flashing me.

Save

2007 TITAN LE

Discussion Starter · #3 · Dec 21, 2007

krh2 said:
There is a bolt on the top of both light housings. Wrench or star driver will turn it. Clockwise = down, counterclockwise = up. I did the leveling kit and one full turn on each stopped others from flashing me.

is it white plastic?

Save

Carbeaux

· #4 · Dec 21, 2007

On my 06 I don't remember it being white. I thought it was black.

Save

krh2

· #5 · Dec 21, 2007

Hold on. I'll get you a pic.

Save

krh2

· #6 · Dec 21, 2007

These only adjust them up/down. I have no idea how to adjust them lateraly or if you even can.

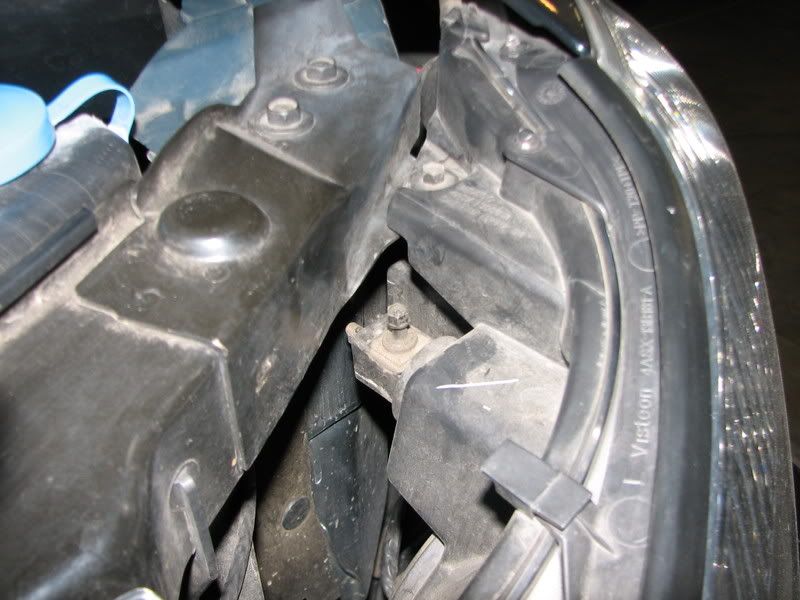

Driver's side

Passenger side

See less See more

Save

2007 TITAN LE

Discussion Starter · #7 · Dec 21, 2007

thanks for the pics krh2, I was trying to mess with something completely different. I do not see it in your pics. No wonder it did nothing to the headlights. I am now curious to see what I was messing with. I will post some pics of the white plastic screw.

Save

25370

· #8 · Dec 28, 2007

2007 TITAN LE said:
thanks for the pics krh2, I was trying to mess with something completely different. I do not see it in your pics. No wonder it did nothing to the headlights. I am now curious to see what I was messing with. I will post some pics of the white plastic screw.

I just adjusted mine. I have an 07 and my screws are white... It will take more than one turn to see the beam adjust.

Save

hjhTITAN

· #9 · Jul 7, 2011

Do you happen to have pictures of the white plastic piece? I have that and don't see the screw on top and can't find a socket to fit it? I need to adjust my lights badly but can't figure out how

Save

Citadel

· #10 · Jul 7, 2011

hjhTITAN said:
Do you happen to have pictures of the white plastic piece? I have that and don't see the screw on top and can't find a socket to fit it? I need to adjust my lights badly but can't figure out how

You need a torx wrench small enough to fit down in the hole to rotate.

Save

f14tomcat5

· #11 · Jul 7, 2011

I have a 2010 and there is a white screw on the rear of the headlight assembly you use for tilt adjustment. It is 10mm i believe. You can also use a star adjuster. I found a ratcheting box wrench works great.

Save

08crewcab

· #12 · Jul 7, 2011

nice thanks for the info guys i just ordered some HIDs and will need to re-adjust.

Save

Rontay

· #13 · Mar 31, 2013

I lost my bolts for the headlight assembly. Do you know what size screw I can replace it with?

Save
