Painted PML Diff Cover

4597 Views 10 Replies 7 Participants Last post by Pale Rider, Jan 28, 2016

tcoche

Discussion Starter · May 21, 2011

So I finally received my PML diff cover. Long frustration and battle with Moe's Performance. This is the as cast version of the diff cover. Anyway, I went to a place named Painters Supply. I took my paint code of my truck to them, Red Brawn. They mixed up a half pint and filled an aersol can full for me. Bought some red oxide primer, recommended by painters supply, got home and started painting the cover. So far it came out awesome! I love it. Looks much better in person than these pics. I am waiting an hour and then Im going to put a couple coats of clear on it. Then I'll install it tomorrow evening. Here are some pics....

pre primer...as cast

red oxide primered...

finished...just need to clear coat it in about an hour

See less See more

2004 KC 4x4 Offroad 3.36 gears

Current Mods-

Suspension: RC 6'' lift, PRG UCA's (custom powder coated, maroon), PRG offroad traction bars, PRG driveshaft spacer, bilstein 5100's (lowest setting)
Performance: Uprev Tuner, 4'' Airaid MXP CAI, NismO low temp (62*C) thermostat, saikou michi oil catch can, goodyear gatorback belt, PML diff cover (color matched), rear axle vent mod, gutted b-pipe cats, flowmaster Y pipe, flowmaster 40 series muffler (dumped before rear axle)
Exterior: 35x12.5x17'' maxxis bighorns, royalty core grille, 1.75'' Bora wheel adapters, headlight mod, westin bullbar, KC driving slimlites, smoked clearance lights, bedlined wheels, mirror caps, rear bumper, front bumper and westin step bars, color matched locking fiberglass tonneau cover, tinted tail lights and 3rd brake light, 20% tint and limo tint eyebrow
Interior: WeatherTech digitalfit floorliners, custom radio bezel kit

Save

Reactions: 1

1 - 3 of 11 Posts

tcoche

Discussion Starter · #4 · May 22, 2011

Thanks for the replies...I appreciate it! Finished it up today. It took almost 3 qts.

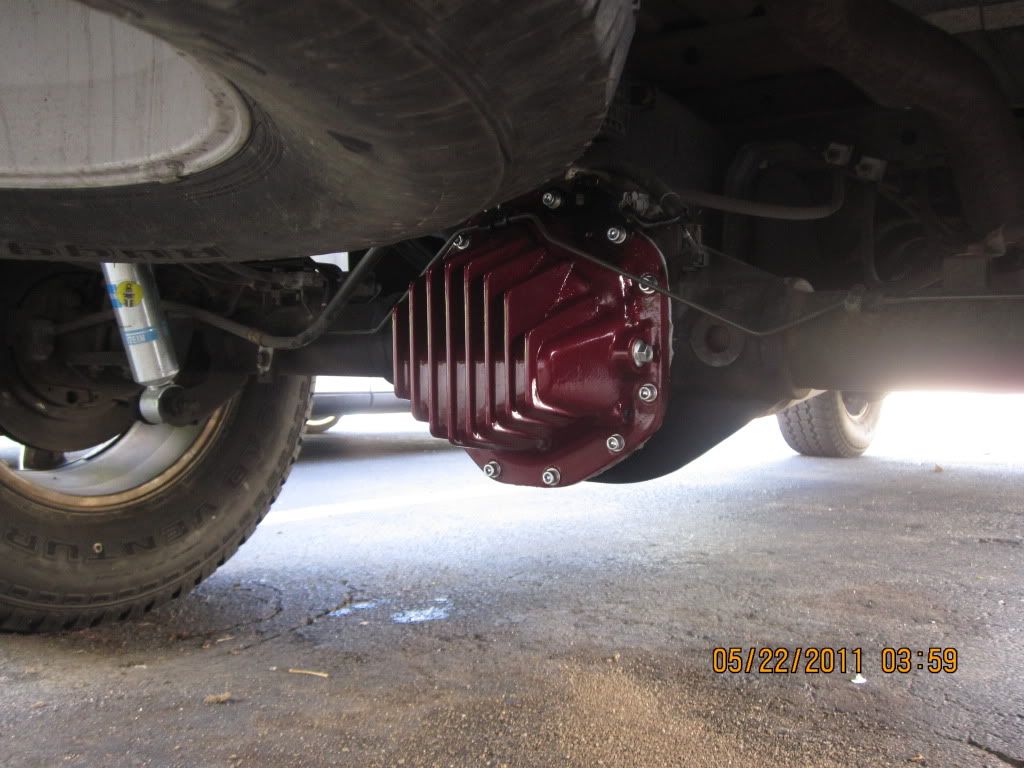

Here it is finished...

See less See more

2004 KC 4x4 Offroad 3.36 gears

Current Mods-

Save

tcoche

Discussion Starter · #7 · May 23, 2011

Thanks guys! I really like how it came out. It looks really good in person and in the daylight. I still have enough paint left in the can. Ill have to take it back to them to fill another aersol can. So i may take the front off and sand the stock one down to bare metal. Then primer and paint it. I need to change the front gear oil anyway.

2004 KC 4x4 Offroad 3.36 gears

Current Mods-

Save

1 - 3 of 11 Posts
